You are here:Home >> Product >> RF/IF and RFID >> RF Diplexers

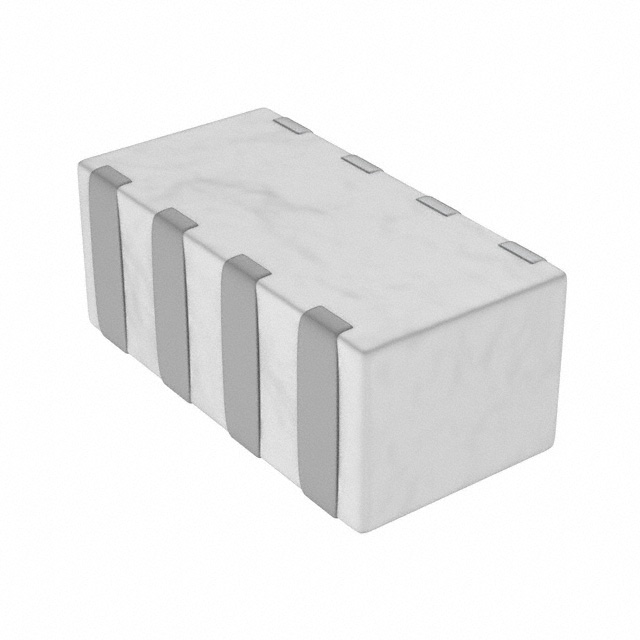

DPX315950DT-5005B2

Part Number: DPX315950DT-5005B2<

Manufacturer: TDK Corporation<

Description: DIPLEXER 2.4/5GHZ W-LAN 1206 SMD<

Data sheet: DPX315950DT-5005B2

Specifications

Part Status	Obsolete
Frequency Bands (Low / High)	2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB)	18.00dB / -
High Band Attenuation (min / max dB)	30.00dB / -
Return Loss (Low Band / High Band)	15dB / 13dB
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), 6 PC Pad
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.
