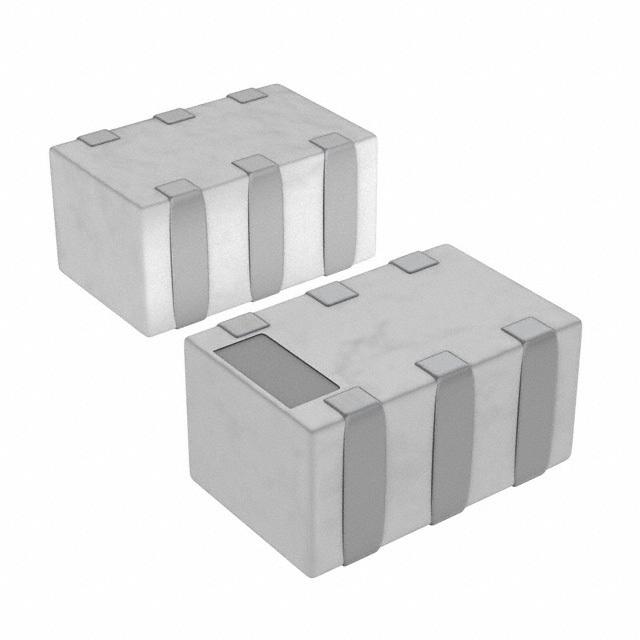

DPX202690DT-4049A2

Part Number: DPX202690DT-4049A2<

Manufacturer: TDK Corporation<

Description: DIPLEXER 832MHZ/2.2GHZ SMD<

Data sheet: DPX202690DT-4049A2

Specifications

Part Status	Active
Frequency Bands (Low / High)	704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz
Low Band Attenuation (min / max dB)	16.8dB typical
High Band Attenuation (min / max dB)	20.4dB typical
Return Loss (Low Band / High Band)	17.9dB / 8.8dB
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric), 6 PC Pad
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.
